Asus B150M + TPM 2

Almost 10 years ago I built a new computer for my father. Given that he lives in a place where the electricity is slightly unstable (a few routers and power supplies have been fried), I decided to tackle this in several ways:

This post is about that last one, the good quality motherboard (and a specific feature of it). I have suffered from the capacitor plague, so that was something I was quite keen to avoid. I ended-up choosing an Asus B150M-A/M.2 for the following reasons:

And 10 years later, I have to say I’m quite surprised how good that choice was:

Yes, that was a very long introduction for the subject of this post: TPM2 on the Asus B150M.

A last word on this motherboard choice, not everything is beautiful:

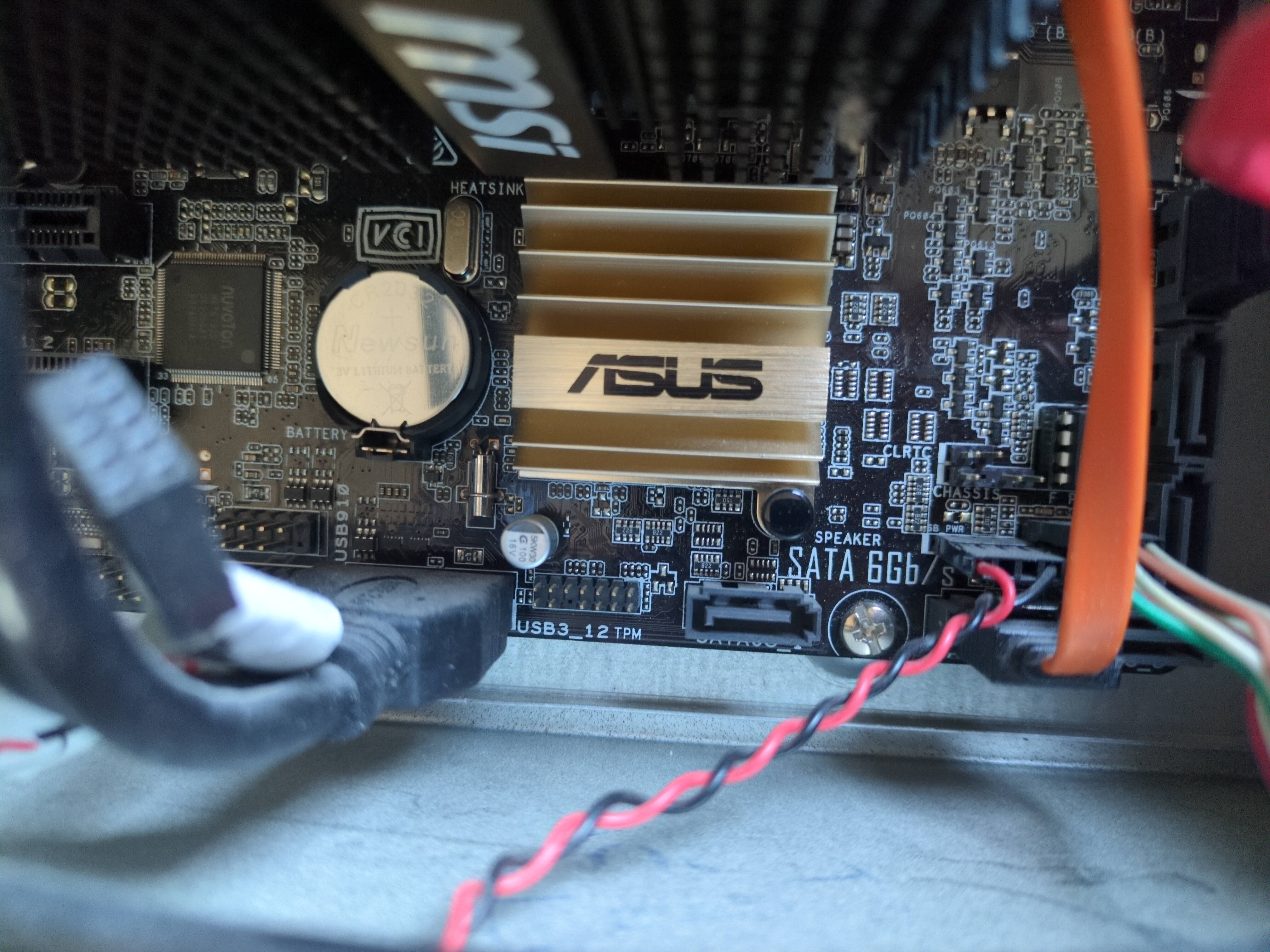

TPM connector

From the motherboard’s manual:

TPM connector (14-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

That’s all. Nothing more about it.

First of all, I didn’t even knew that a discrete TPM could be on an external board. I thought it must be highly integrated in the motherboard, not something that you can add as an option.

Now that we know that the motherboard has a TPM connector, the question is: where to find a compatible TPM module?

TPM module

Asus website is not keen on giving more information about the available modules, their compatibility, etc. It looks like there are several models, with a different number of pins, and different models with the same number of pins too.

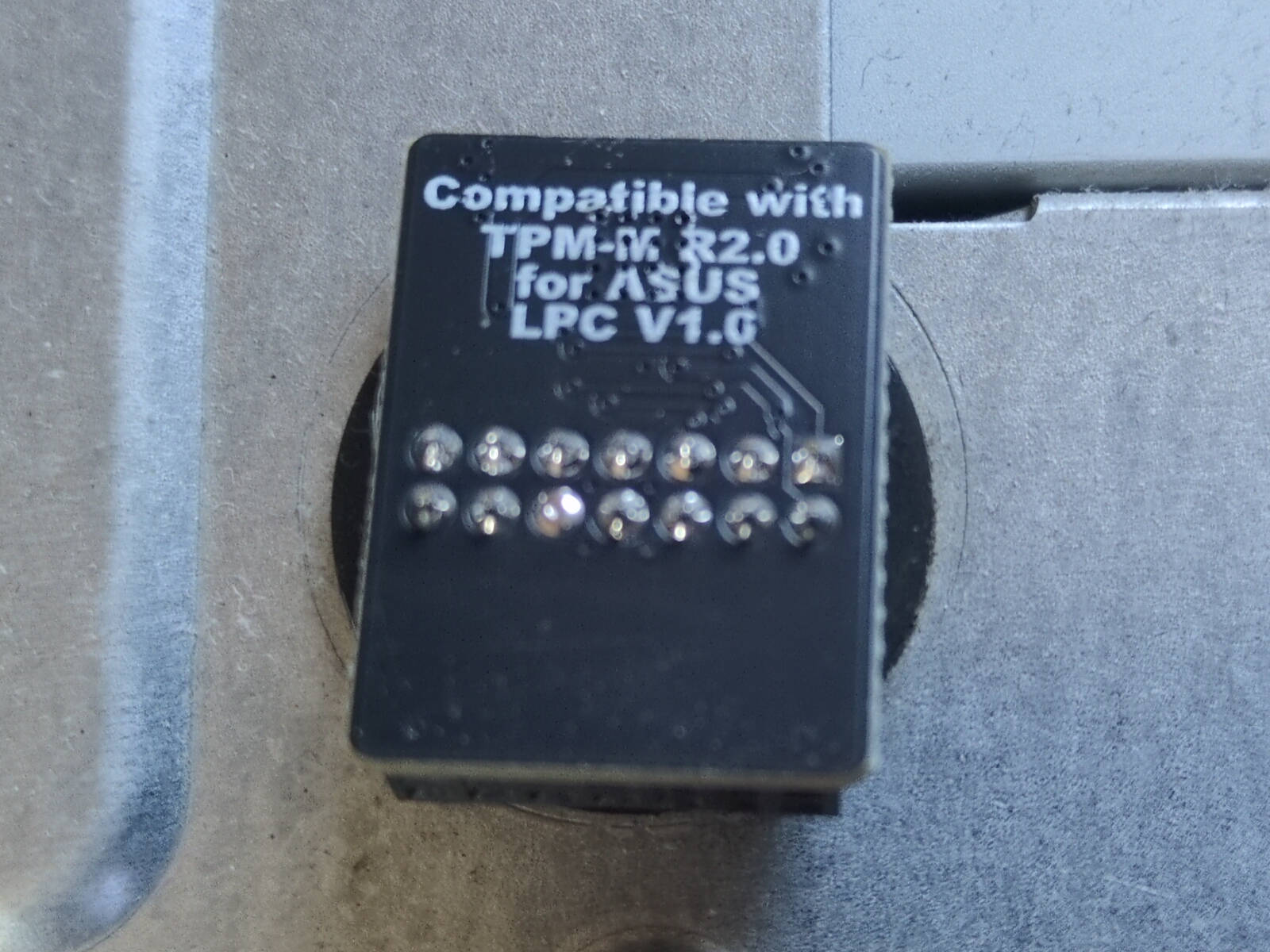

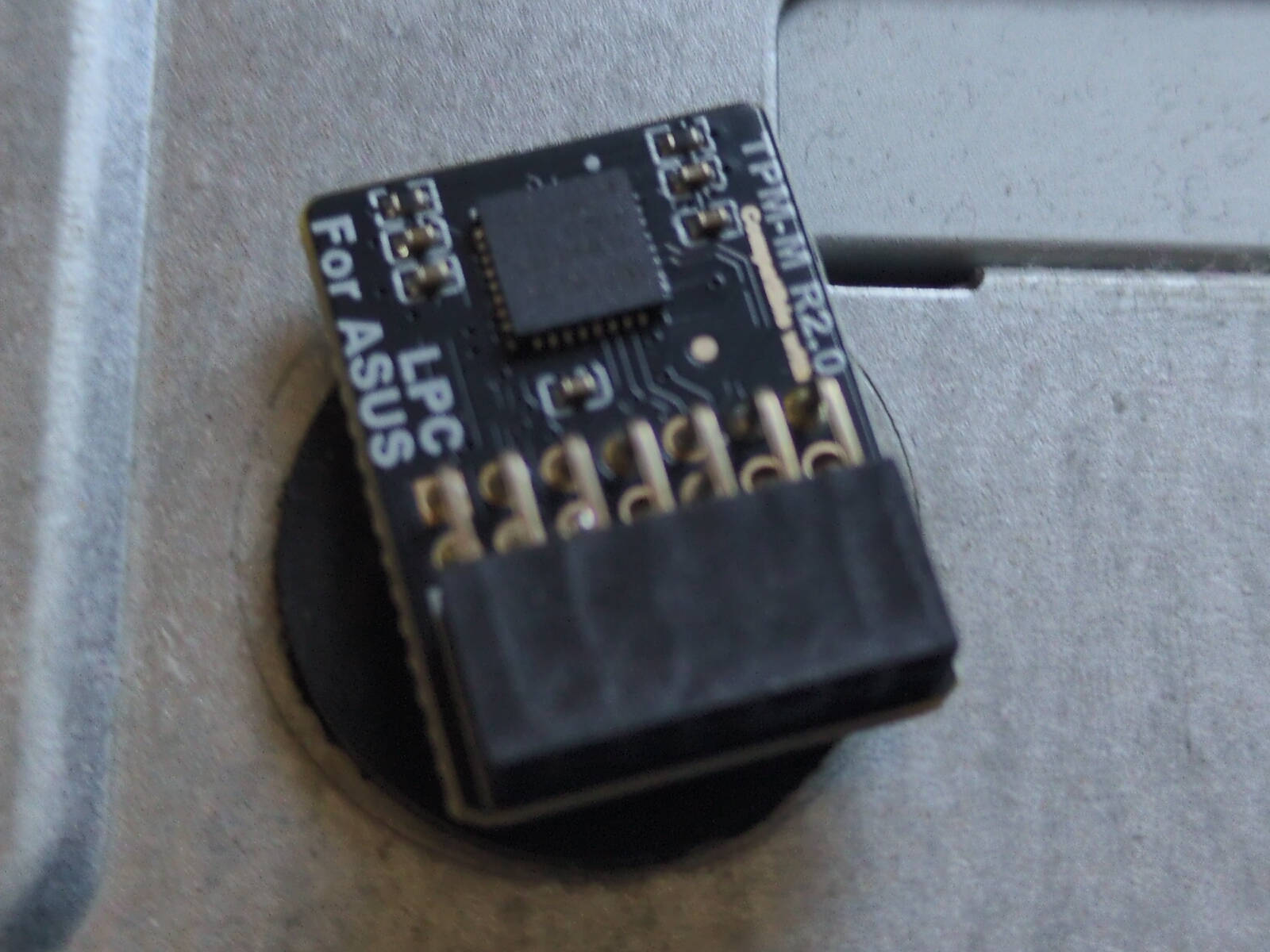

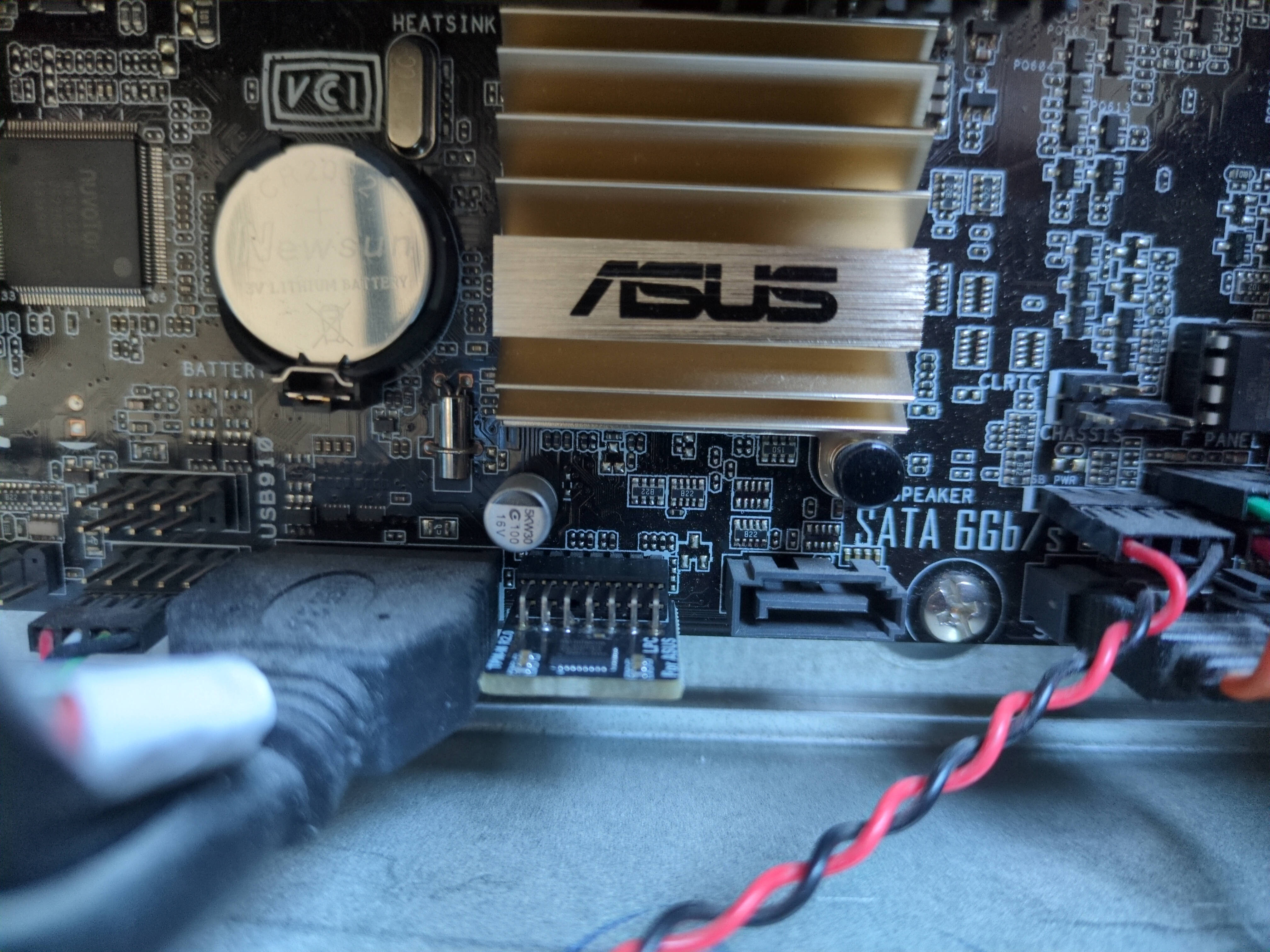

I ended up spending 20 € on a “TPM2.0 LPC 14 Pin Module” with an Infineon SLB9665 chip, said to be compatible with Asus “TPM-M R2.0” module, which I think is the one supported by that motherboard… And it is 🎉.

It’s worth noting that a TPM 2.0 is a requirement for Windows 11. That requirement is the main reason that made 400 million working computers obsolete… If you needed any more proof that Microsoft is not here to save the planet but only their shareholder wallets… But this TPM module won’t make it work with Windows 11, Microsoft arbitrarily decided to support only 8th generation and newer for Intel CPUs, and this motherboard is for 6/7th gen. Though Rufus may help you create a Windows 11 image with compatibility checks disabled so you can install Windows 11.

Anyway, why running Windows when almost every other operating system is better?

TPM configuration

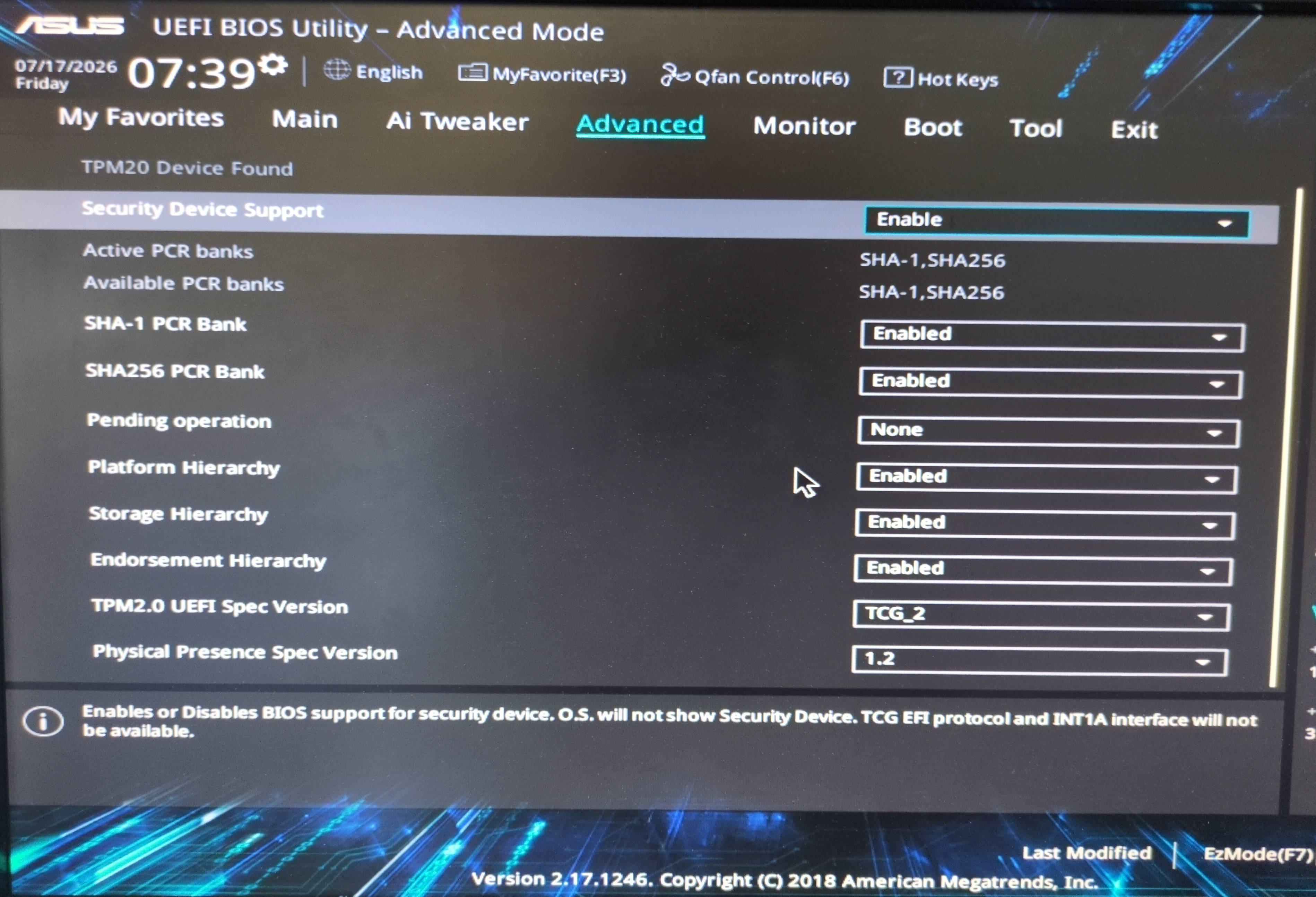

In the motherboard BIOS, in the “Advanced” menu, there should be a “TPM20 Device Found” message. Here, make sure it’s enabled and change the “Pending operation” to clear it.

Then, on save and exit, I got the following error message:

Could not create MokListRT: Volume Full
Could not create MokListXRT: Volume Full
Could not create SbaLevelRT: Volume Full
Could not create MokListTrustedRT: Volume Full
Something has gone seriously wrong: import_mok_state() failed: Volume Full

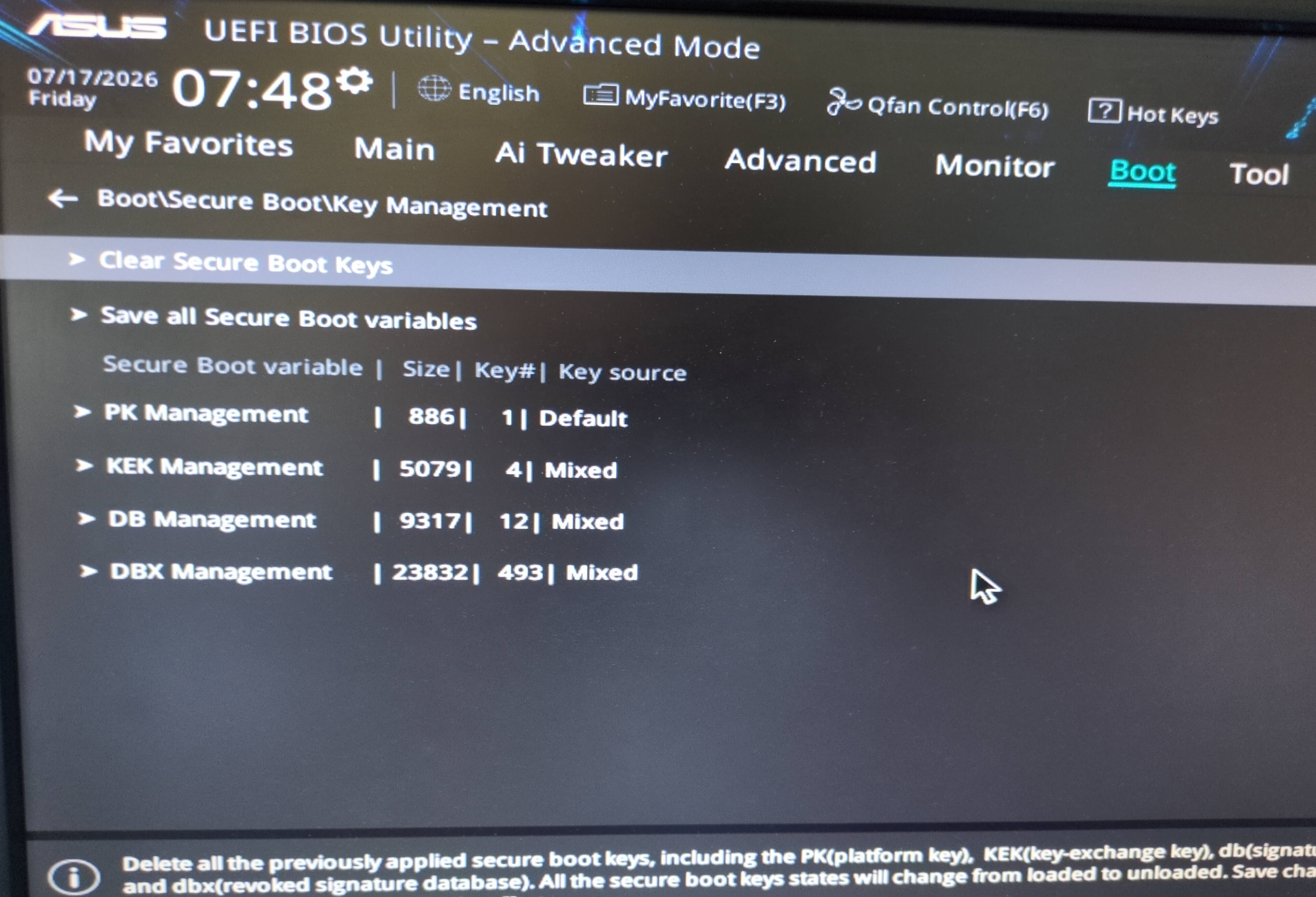

The solution to that is to clear the secure boot keys in the BIOS, Boot → Secure Boot → Key Management, then “Clear Secure Boot Keys”. And Linux booted as usual.

TPM usage

That computer’s hard drive is LUKS encrypted. So when booting up, it requires a passphrase to unlock the drive, then the username and password to log into the user’s session.

So for a bit of convenience, the TPM can help bypass the first step. Basically, if the motherboard firmware and the boot partition have not been tampered with, the TPM can release the LUKS’ passphrase.

To do so:

Reboot, and now the computer directly arrives on the user prompt.

But as always, if it’s more convenient, it’s probably less secure. And that’s true in the present case, anyone can start the computer, and the drive will be automatically unlocked, removing a security layer.
